Accessibility for M3
The UVL-Series are well-proven lifts for commercial use. Mounted in the step or other dedicated compartment of the bus, they stay out of sight and out of the way until called upon. The UVL-Series wheelchair lifts are fully automatic and operated by a attendant using a hand-held control.
Reliable
Our UVL lifts are high-quality well-proven workhorses. These lifts are installed in thousands of buses and used daily all over the world. Each unit goes under rigorous scrutiny both during and at the end of the production phase. We do this to ensure a lift that will do its job and continue to do so for a long, long time.

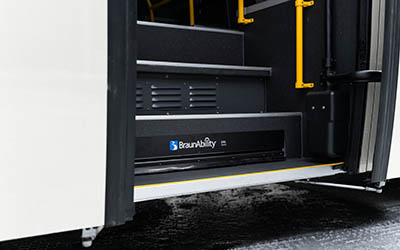

The cassette form makes it possible to hide the lift where it won’t interfere with anyone’s view, be it passenger or driver. Nor will it take up valuable floor space giving the bus flexibility in floor plan design. A common place to install the UVL-Series is in the step of the bus, but it can also be any other dedicated compartment.

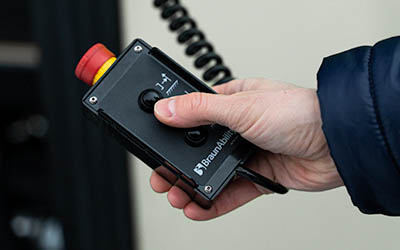

A handheld 3-button control is used to operate all lift functions. Each button is marked clearly making it easy to understand and use. The handheld control is made of durable plastic and designed to withstand weather, abuse and heavy usage.

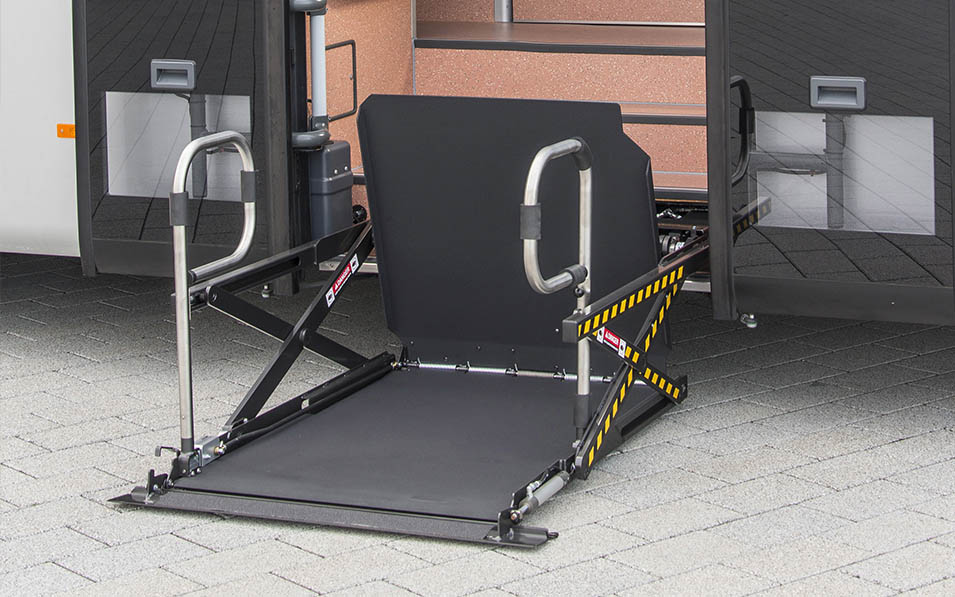

In the event of a complete vehicle electrical failure, the UVL-Series will still be fully operational thanks to a manual backup system. This allows the operator to manually raise and lower the platform using a hand pump. The backup system is easy to use and fully functional even under high loads. The manual backup system is a standard feature included in all UVL lifts.

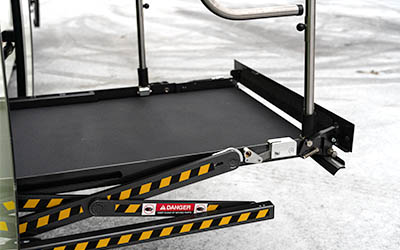

Anti-slip
As an added safety feature the platform of the UVL-Series has been given a slip-resistant surface. This provides wheelchair users and operator with a good grip even when wet.
Quiet and rattle free
The UVL-Series is smooth and quiet in operation. The rattle-free design provides a pleasant ride while driving.
Tested and approved.

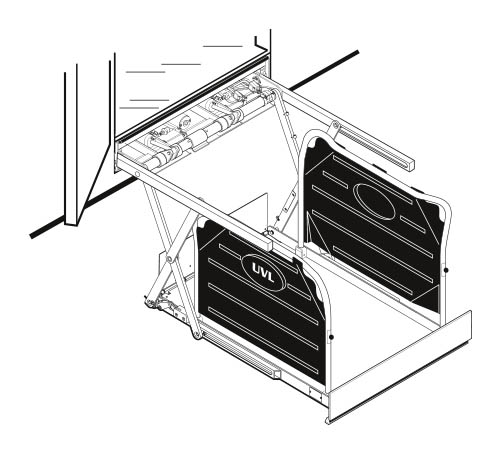

UVL855 R24
Dimensions
| Platform width | 760 mm |
| Platform length | 1350 mm |
| Length | 1840 mm |
| Width | 1100 mm |
| Height | 130 mm |
| Floor to ground | 1600 mm |
| Required door width | 1100 mm |
| Minimum overlap | 38 mm |
| Max travel down | 930 mm |
| Max travel up | 670 mm |
| Min travel up | 120 mm |
| Max travel out | 80 mm |
Weights
| Weight capacity | 340 kg |
| Unit weight | 263 kg |
UVL855 STEP
Dimensions
| Platform width | 800 mm |
| Platform length | 1220 mm |
| Length | 1950 mm |
| Width | 1100 mm |
| Height | 130 mm |
| Floor to ground | 1240 mm |
| Required door width | 1080 mm |
| Minimum overlap | 38 mm |
| Max travel down | 570 mm |
| Max travel up | 670 mm |
| Min travel up | 480 mm |
| Max travel out | 300 mm |
Weights
| Weight capacity | 363 kg |
| Unit weight | 272 kg |
Testing
| Cycle test approved (16,000) | |
| Climate test approved | |
| EMC test approved | |
| E5 Global Type approved |
