210-6775555- Description

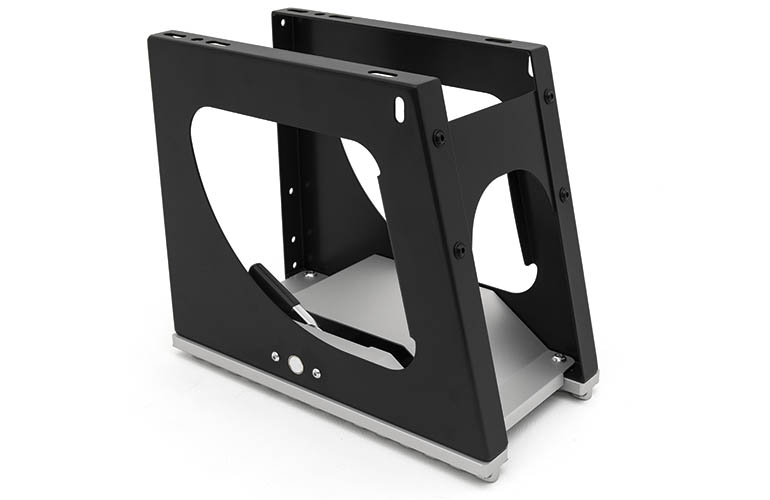

TwinLock
Joined seat legs with single hand locking feature.
The TwinLock is a joined set of seat legs with a mechanism to secure the seat in the rails of the vehicle. It’s easy to use and requires only one hand for operation. The low friction surface under the TwinLock allows seats to slide back and forth effortlessly in the tracks. Once in the locked position, the seat is tensioned into the tracks so there is no rattle. Each unit is a complete set of legs with a locker, all you need to add is your seat.
TwinLock is tested and approved in combination with SpaceFloor according to M1 standards.
The optional wheels enable moving seats around the vehicle without lifting. To use TwinLock with our U-Seat the Seat bracket is needed due to the different hole pattern of the seat.
Quick facts
- Easy to use single-handed operation
- Low weight
- Rattle free
- Available in two heights and four widths
- Optional transport wheels
| Model | Height | Width | Weight |
| 480041 | 300 mm | 156 mm | 5.65 kg |
| 480246 | 300 mm | 173 mm | 5.77 kg |
| 480220 | 300 mm | 234 mm | 6.01 kg |
| 480192 | 300 mm | 252 mm | 6.20 kg |
| 480106 | 230 mm | 156 mm | 5.15 kg |
| 480263 | 230 mm | 173 mm | 5.27kg |
| 480264 | 230 mm | 234 mm | 5.51 kg |
| 480187 | 230 mm | 252 mm | 5.70 kg |

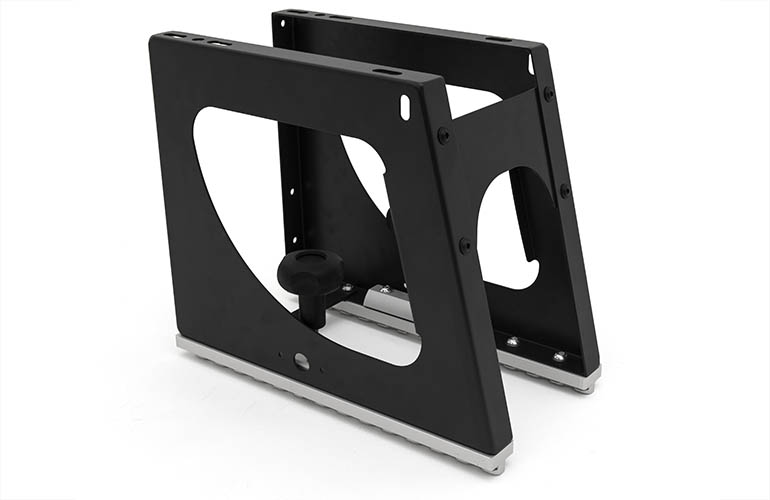

Space Legs
Low weight seat legs with screw locker.
Space Legs are seat legs that offer a simple way to secure the seat in the rails of the vehicle. Space Legs are bolted together making the seat legs perfectly square with no need to adjust to fit into the rails.
The standard Space Legs uses a simple screw locker mechanism to secure the seat in the rails. The single leg version is used to fit a seat above the wheel arch. A wall bracket secures the seat on the opposite side. The single leg uses the same screw locker as the standard version. Finally, there is the semi-permanent version, Space Legs fixed, which secures the seat to the rails by using an M1 or M2 glider.
Space Legs are tested and approved in combination with SpaceFloor according to M1 standards.
The optional wheels enable moving seats around the vehicle without lifting. To use Space Legs with our U-Seat the Seat bracket is needed due to the different hole pattern of the seat.
Quick facts:
- Low weight
- Rattle free
- Available in two heights and four widths
- Optional transport wheels
| Model | Height | Width | Weight | |
| Fixed position | ||||
| 480272 | 300 mm | 156 mm | 3.70 kg | |
| 480273 | 300 mm | 173 mm | 3.83 kg | |
| 480274 | 300 mm | 234 mm | 3.91 kg | |
| 480275 | 300 mm | 252 mm | 4.09 kg | |
| 480276 | 230 mm | 156 mm | 3.20 kg | |
| 480277 | 230 mm | 173 mm | 3.33 kg | |
| 480278 | 230 mm | 234 mm | 3.41 kg | |
| 480279 | 230 mm | 252 mm | 3.60 kg | |
| Screw locker for flexible position | ||||
| 480126 | 300 mm | 156 mm | 4.70 kg | |
| 480269 | 300 mm | 173 mm | 4.83 kg | |
| 480270 | 300 mm | 234 mm | 4.91 kg | |
| 480271 | 300 mm | 252 mm | 5.09 kg | |
| 480280 | 230 mm | 156 mm | 4.20 kg | |
| 480281 | 230 mm | 173 mm | 4.33 kg | |
| 480282 | 230 mm | 234 mm | 4.41 kg | |
| 480283 | 230 mm | 252 mm | 4.60 kg | |
| Single leg for wheelarch with screw locker for flexible position | ||||
| 480127 (left) | 300 mm | - | 2.20 kg | |
| 480128 (right) | 300 mm | - | 2.20 kg | |
